Liz Bonnin introduces a short film explaining the techniques used on Hayling Island to control coastal erosion.
Video
LIZ BONNIN: Hi, I'm Liz Bonnin. Here at the Burning Gap, in East Sussex, coastal erosion is a really big deal. This row of houses has been getting shorter and shorter for the last 100 years. There used to be seven, and now there are only four left.
Erosion is something anyone studying physical geography is going to have to get to grips with. This next clip shows how some areas are particularly vulnerable to coastal erosion.
And it looks at some of the interesting measures people take to monitor it, and protect local homes. Let's join Ellie Harrison on the beach at Hayling Island, near Chichester, in Hampshire.

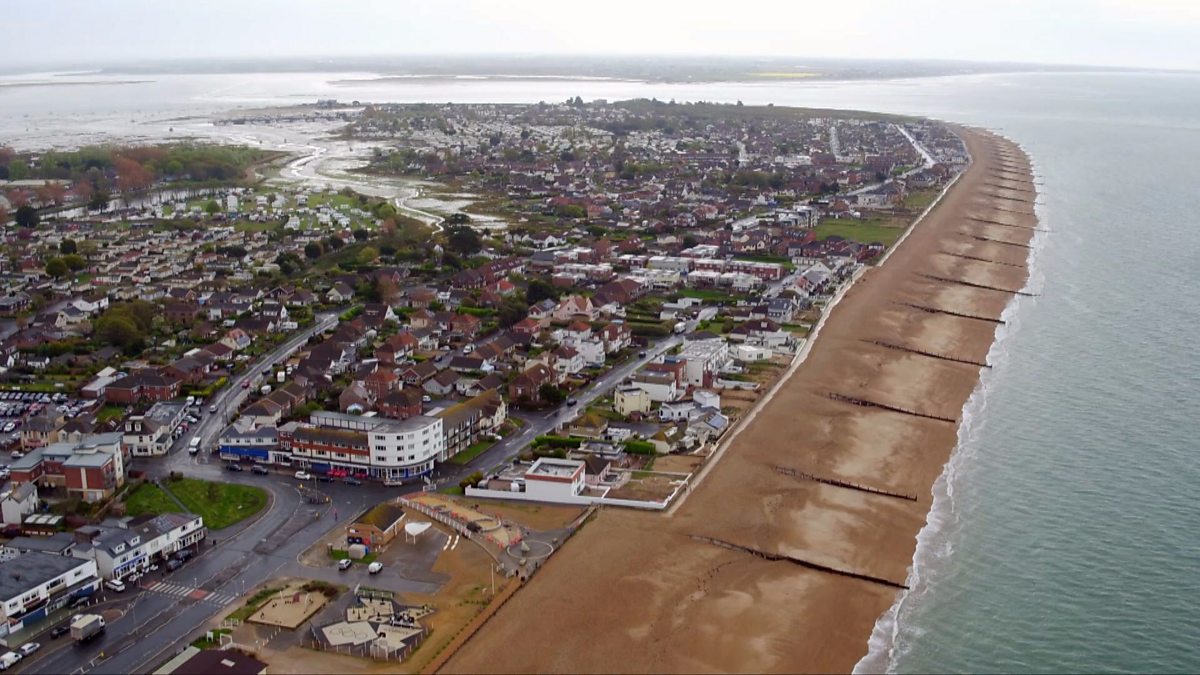

ELLIE HARRISON: This is Hayling Island, just near Portsmouth, and it's a hotspot for beach combing.
Although I haven't found anything yet. Perhaps I should have pulled out the big guns. Check out the size of this detector. Sacha, yours is definitely bigger than mine. Let's see it in action.
Sacha Neil is a coastal engineer from the Eastern Solent Coastal Partnership, but she's not beach combing, she's beach scanning.
What are you actually doing with this kit?
SACHA NEIL: So I'm not looking for treasure like you, Ellie, I'm actually collecting data from a number of different tracer pebbles that were deployed at various locations along this frontage.
ELLIE HARRISON: Tracer pebbles? That's interesting.
Tracer pebbles are an ingenious way to study the movement of shingle along the beach. Hayling Island has battled with coastal erosion and flooding for decades. During storm Brian in 2017, around 15 metres of sea wall was lost. But data from these special pebbles is providing vital information to help manage the coastline.
These are our tracer pebbles then?
SACHA NEIL: This is them, yeah.
ELLIE HARRISON: How does it all work?
SACHA NEIL: Well the technology's no different to that that you'd find in a store. The barcode on clothes, or security tags. And all it is, is this tiny little glass tag really.
ELLIE HARRISON: Yeah.
SACHA NEIL: And this stores an ID number. So we then place the tags inside the pebbles, and the scanner's able to read the number, and that saves it and we're able to monitor that as it moves along the beach.
ELLIE HARRISON: So I'm guessing the challenge is how you put a tag inside a pebble?
SACHA NEIL: It is, yes. Well first of all we have the problem of drilling it. And what we've ended up doing is, we send it to a local company who water-jet them. So we get this really nice clean drilled hole. Then we use a bit of resin putty, and then it's simply a case of plugging the hole with the tag. We seal the hole, and this is a water-proof resin so it will go hard. So we let it dry. And that's our pebble.
ELLIE HARRISON: And then once that's been done, what's the process after that? Once it's dried and it's looking like a pebble again.
SACHA NEIL: We then weigh and we measure them all. We give them all a number as well. This gets logged on to a database that we store, so we know exactly how big each pebble is and what its number is.
ELLIE HARRISON: And what has the data shown?
SACHA NEIL: For us along here, what we found - which is quite important - is that material comes ashore further along the beach and then we're finding that almost two-thirds of the material is moving west, towards this end of the beach, and almost a third is going east towards the other end.
ELLIE HARRISON: That information allows the team to recycle material from either end of the beach to build back up any of the eroded areas, restoring the beach's natural defence against the sea. Now it's time to place some of the tracer pebbles.
There we go. See how far that goes.
SACHA NEIL: Beautiful! [LAUGHS]
ELLIE HARRISON: So we just sort of chuck it somewhere or? What's the next stage?
SACHA NEIL: Place it. We'll place it on the beach.
ELLIE HARRISON: Place it nicely.
SACHA NEIL: Place it nicely [LAUGHS].
ELLIE HARRISON: So where would you put them?
SACHA NEIL: If we try and get them in the middle of the beach, maybe about halfway down.
ELLIE HARRISON: And then just literally, ba-donk, down they go?
SACHA NEIL: Just put them on the beach, yeah.
**ELLIE HARRISON: Including… Are you doing the test? I'm sure they're there.
SACHA NEIL:** And then we'll scan the pebbles here. And it's picked them up, it's detected so we've now got a baseline position to work to when we find them again.
ELLIE HARRISON: And then you just walk away?
SACHA NEIL: We walk away.
ELLIE HARRISON: Let them roll their own way.
SACHA NEIL: Let the sea do its job, yeah.
ELLIE HARRISON: Alright.
Monitoring the movement of the shingle in this way is deemed a soft defence, but some areas of Hayling Island are more vulnerable to the elements, needing what's called hard defences. Dr Samantha Cope is also part of the coastal partnership trying to deal with the complexities of the beach here on Hayling Island.
It looks quite a bit different up here with these big rocks, is this a different approach?
DR SAMANTHA COPE: Yeah so this section through here is more vulnerable to hinging back, what with the entrance of Chichester Harbour and the focusing onshore waves. And just behind us we have a flood route that will feed through to flooding the houses, which is why we put the rock in place.
ELLIE HARRISON: And if there was no beach management at all if we simply left the sea to do what it would do, what would happen here?
DR SAMANTHA COPE: Yeah so the beach would very quickly erode, move in to Chichester Harbour and up towards the west of Hayling Island. And that would then put these 1700 properties behind us at risk of flooding.
ELLIE HARRISON: So it's quite important that the hand of man has to intervene I suppose.
DR SAMANTHA COPE: Yeah and this allows us to continue to work with nature and with the coastal processes.
ELLIE HARRISON: Well my pebble hasn't moved that far yet, but where will it turn up in 20 years from now?
LIZ BONNIN: I haven't got a tracer, but it does make you think. I wonder where this pebble is going to end up.
Download/print a transcript of the video.
Liz Bonnin introduces a clip exploring the significance of coastal erosion.
The short film explains some of the methods used to manage coastal erosion on Hayling Island in Hampshire, including the use of tracer pebbles to measure the movement of shingle along the beach.
The clip explains how the information is used to ensure soft engineering coastal management techniques are effective in restoring the beach's natural defences against the sea. Hard engineering techniques are also used on Hayling Island and the clip explains how these are used to prevent flooding.
Teacher notes
Download/print the Teacher Notes for this episode (pdf).
Before watching the video
Locate Hayling Island on a map of the UK and ask students to write a locational description.
Look at images of Hayling Island and ask students why they think this location needs protecting from the sea. Ask them if they recognise any of the strategies being used to protect Hayling Island.
Introduce key terms such as:
Shingle: A mass of small rounded pebbles.
Hard engineering: Using artificial structures to control natural processes.
Erosion: The process where natural forces like wind, water, or ice wear away and transport soil, rock, and other materials from one location to another.
During the video
You may wish to stop at relevant points during this short film to pose questions and check understanding or wait until the end.
Useful questions might include:
- What is erosion?
- What is Sacha beach scanning for?
- What are tracer pebbles?
- How do the tracer pebbles help us to understand more about the movement of sediment?
- Why is some of the sediment moved by the team?
- Why have big rocks been placed in some locations?
- Why is beach management needed?
- What would happen without human intervention?
After watching
Discuss with students how effective they think the methods are that are being discussed and whether this use of technology is a good way to help protect coastlines.
Show students a range of different coastal management methods such as groynes, riprap, dune stabilisation and beach nourishment. Ask students to describe each method and to consider the advantages and disadvantages of each method. Look at aerial photographs of Hayling Island – can students identify any of those methods in the photographs.
A decision-making exercise could be set up where students decide what other coastal management methods could be used in Hayling Island to better defend it from coastal erosion. Students could be given information about the costs of each method and then given a budget of what they can spend. This could then be presented to the rest of the class, with students justifying their choices of coastal management strategy.
Where next?
Ask students to investigate another location with coastal management strategies, this could be that is local to your school. Students should divide their research into the hard and soft engineering strategies and their effectiveness.
Students could also investigate which shoreline management plan their location falls into and whether the strategy of ‘hold the line’, ‘advance the line’, ‘managed retreat’ or ‘do nothing’ is being used.
Curriculum notes
This topic appears in Geography at KS3 (Hydrology) and KS4 / GCSE (Rivers and water) in England, Wales and Northern Ireland and National 4/5 in Scotland.
